316 &304stainless steel wire mesh

Product Name: 316 &304stainless steel wire mesh

Model NO: NF-WM-02

Product Description :

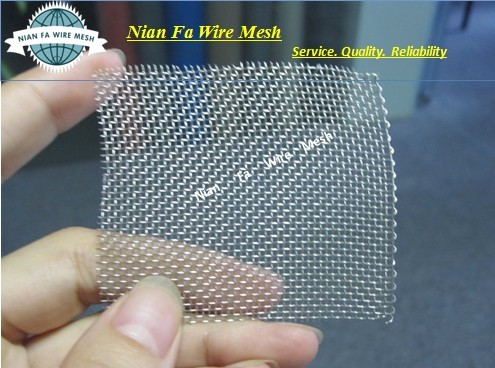

Woven stainless steel screen mesh Our company is the major manufacture of stainless steel wire mesh,especially know as its best quality and excellent repulation. Material of woven stainless steel screen mesh : SUS201,SUS304,SUS304L,SUS316,SUS316L Weaving method: plain weave,twilled weave,dutch weave. Uses of woven stainless steel screen mesh : extensively used in mining,chemial industury,food industury and pharamaceutial industury. characteristics of woven stainless steel screen mesh :Acid reistance ,Alkali resistance,heat resistance,corrosion resistance

HOW TO ORDER/SPECIFY

        Chat With Me
  • Type
  • Specifications
  • Packing
  • Downloads

 plain weave,twilled weave,dutch weave.

 Wire diameter: 0.025mm-2.0mm

Mesh:2mesh-600mesh
Width: 0.5m-8m
Length of standard: 30m

Any size avalible as the requiements of the customer.



mesh/inch wire diameter/mm aperture/mm mesh/inch wire diameter/mm aperture/mm
2mesh 1.8 10.9 60mesh 0.15 0.273
3mesh 1.6 6.866 70mesh 0.14 0.223
4mesh 1.2 5.15 80mesh 0.12 0.198
5mesh 0.91 4.17 90mesh 0.11 0.172
6mesh 0.81 3.433 100mesh 0.1 0.154
8mesh 0.6 2.575 120mesh 0.08 0.132
10mesh 0.55 1.99 140mesh 0.07 0.111
12mesh 0.5 1.616 150mesh 0.065 0.104
14mesh 0.45 1.362 160mesh 0.065 0.094
16mesh 0.4 1.188 180mesh 0.053 0.088
18mesh 0.35 1.06 200mesh 0.053 0.074
20mesh 0.3 0.97 250mesh 0.04 0.061
26mesh 0.28 0.696 300mesh 0.035 0.049
30mesh 0.25 0.596 325mesh 0.03 0.048
40mesh 0.21 0.425 350mesh 0.03 0.042
50mesh 0.19 0.318 400mesh 0.025 0.0385

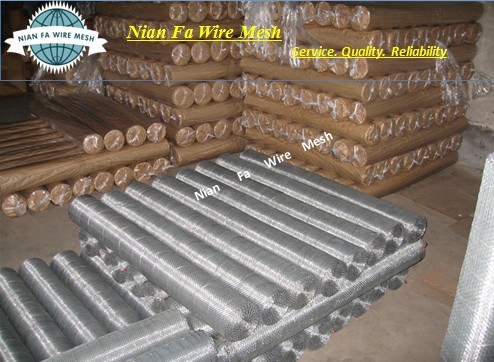

 packing : with paper tube inside and water-proof outside, or as your required.
