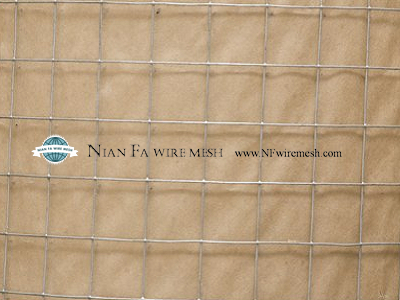

Square Galvanized Welded Mesh
Product Name: Square Galvanized Welded Mesh
Model NO: NF-WD-010
Product Description :
Assortments available:
Welded wire mesh, hot dipped galv. after welding
Welded wire mesh, galv. before welding
Stainless steel welded wire mesh
Pvc-coated welded wire mesh
 |
 |
|
- Specification
- Packing
Use: Welded wire mesh is used in a number of industries, like construction, petroleum, chemical industry, breeding, garden fencing and foodstuff industry.
Assortments available:
Welded wire mesh, hot dipped galv. after welding
Welded wire mesh, galv. before welding
Stainless steel welded wire mesh
Pvc-coated welded wire mesh
|
Specification in British System
|
Specification in British System
|

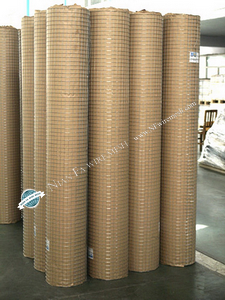

Packing Dia.(mm)
|
||
|
Width/length:3'x100'
|
Width/length:0.914mx30.48m
|
|||
|
Width/length:4'x100'
|
Width/length:1.219mx30.48m
|
|||
| Mesh | Wire Dia. in BWG |
Mesh
|
Wire Dia.
|
|
| 1"x2" | 14 | 25.4mmx50.8mm | 2.10mm | 390 |
| 1"x2" | 15 | 25.4mmx50.8mm | 1.82mm | 360 |
| 1"x2" | 16 | 25.4mmx50.8mm | 1.65mm | 320 |
| 1"x2" | 17 | 25.4mmx50.8mm | 1.47mm | 310 |
| 1"x1" | 14 | 25.4mmx50.8mm | 2.10mm | 400 |
| 1"x1" | 15 | 25.4mmx50.8mm | 1.82mm | 370 |
| 1"x1" | 16 | 25.4mmx50.8mm | 1.65mm | 330 |
| 1"x1" | 17 | 25.4mmx50.8mm | 1.47mm | 320 |
| 1"x1" | 18 | 25.4mmx50.8mm | 1.24mm | 280 |
| 1"x1" | 19 | 25.4mmx50.8mm | 1.06mm | 255 |
| 3/4"x3/4" | 16 | 19.05mmx19.05mm | 1.65mm | 350 |
| 3/4"x3/4" | 17 | 19.05mmx19.05mm | 1.47mm | 330 |
| 3/4"x3/4" | 18 | 19.05mmx19.05mm | 1.24mm | 290 |
| 3/4"x3/4" | 19 | 19.05mmx19.05mm | 1.06mm | 260 |
| 3/4"x3/4" | 20 | 19.05mmx19.05mm | 0.88mm | 240 |
| 1/2"x1" | 17 | 12.7mmx25.4mm | 1.47mm | 335 |
| 1/2"x1" | 18 | 12.7mmx25.4mm | 1.24mm | 300 |
| 1/2"x1" | 19 | 12.7mmx25.4mm | 1.06mm | 265 |
| 1/2"x1/2" | 18 | 12.7mmx12.7mm | 1.24mm | 300 |
| 1/2"x1/2" | 19 | 12.7mmx12.7mm | 1.06mm | 275 |
| 1/2"x1/2" | 20 | 12.7mmx12.7mm | 0.88mm | 250 |
| 1/2"x1/2" | 21 | 12.7mmx12.7mm | 0.81mm | 230 |
| 1/2"x1/2" | 22 | 12.7mmx12.7mm | 0.71mm | 215 |
| 1/4"x1/4" | 23 | 6.35mmx6.35mm | 0.63mm | 215 |
| 3/8"x3/8" | 21 | 9.35mmx9.35mm | 0.81mm | 250 |
