Stainless Steel Security Window Screen
Product Name: Stainless Steel Security Window Screen
Model NO: NF-WS03
Product Description :
1.Custom products 2.Stainless Steel 3.Wire Dia:0.8mm-3.5mm 4.For windows and Doors 5.Certificate:ISO9001:2008
 |
 |
|
- Type
- Specifications
- Packing
- Downloads
Material: Stainless steel 304, 316, carbon steel.
Wire diameter and mesh size:
0.7mm x 12 mesh,
0.8mm x 11 mesh
0.9mm x 10 mesh,
1.0mm x 8.5 mesh,
1.6mm x 4.0 mesh.
Weaving method:Plain weave, crimp weave.
Surface: Electrostatic pvc powder spray. The common colors are black, gray, white, or original metal color.
Mesh panel size:
1200mmx2000mm 1200mm*2400mm
1000mmx2000mm 1000mm*2400mm
900mm*2000mm 900mm*2400mm
750mm*2000mm 750mm*2400mm
Max width:1.5m
|
Material |
Mesh |
Wire Dia |
Open (mm) |
Open Area |
|
mm / inch |
% |
|||
|
SS 316 or 304 |
10 x 10 |
0.9mm /0.035" |
1.64 |
41.7 |
|
SS 316 or 304 |
10 x 10 |
1.2mm /0.028" |
1.34 |
27.8 |
|
SS 316 or 304 |
10 x 10 |
0.8mm / 0.032" |
1.74 |
46.9 |
|
SS 316 or 304 |
10 x 10 |
1.15mm / 0.045" |
1.39 |
29.9 |
|
SS 316 or 304 |
11 x 11 |
0.8mm /0.032" |
1.5 |
42.5 |
|
SS 316 or 304 |
11 x 11 |
0.7mm / 0.027" |
1.6 |
48.3 |
|
SS 316 or 304 |
12 x 12 |
0.7mm / 0.027" |
1.42 |
44.8 |
|
SS 316 or 304 |
12 x 12 |
0.58mm / 0.023" |
1.54
|
52.8 |
|
Special mesh can be made according to customers requirement . |
||||

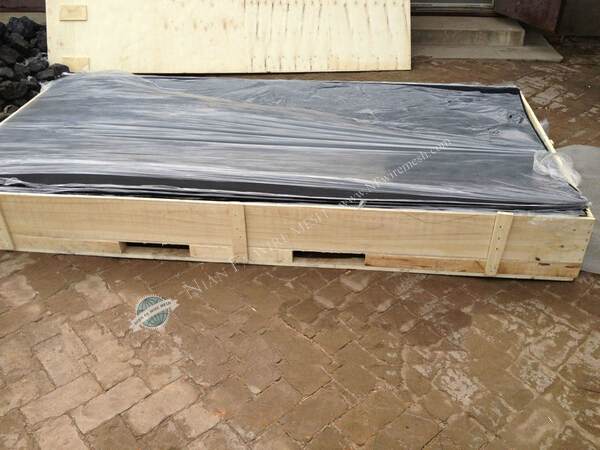

Packed in Carton /Pallet
