Welded Fence
Product Name: Welded Fence
Model NO: WF-001
Product Description :
fence,welded fence,NianFa wire mesh
 |
 |
|
- Details
- Specifications
- Photo
- Downloads
Nian Fa Welded Fence
Cost effective
PVC coating ensures long lifetime
Faster installation
Available as a complete system
Panels
The NianFa panels have a width of 2500 mm and a height from 630 to 2430 mm. The panels have vertical barbs of 30 mm on one side and are reversible (barbs at top or at bottom). Mesh sizes of NianFa 3D are 200 x 50 mm, and 100 x 50 mm for the beam sections. The heavy wires, with a diameter of 5 mm guarantee an extraordinary level of rigidity.Coating Panels made out of galvanized wires. An adhesion coating is given for a perfect adhesion with the polyester coating (min. 100 micron).
Colors
NianFa Mesh is standard available in green RAL 6005 - white RAL 9010

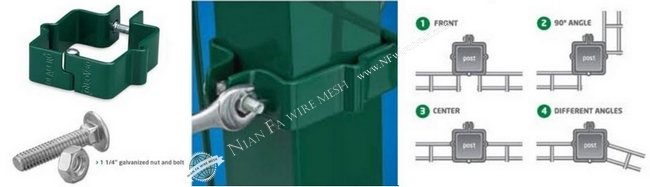

Posts
Welded Fence can be applied to, the Peach post system and the Square post system. For more info see "Posts and accessories".
Gates
The NianFa Fence system is complete and optimal protection is given using the high technology swing and sliding gates
| Fence height | Dimensions panels | Number of reinforcements | Post length |
| (mm) | W x H (mm) | per panel | (mm) |
| 630 | 2500 x 630 | 2 | 1000 |
| 1030 | 2500 x 1030 | 2 | 1500 |
| 1230 | 2500 x 1230 | 3 | 1700 |
| 1530 | 2500 x 1530 | 3 | 2000 |
| 1730 | 2500 x 1730 | 3 | 2200 |
| 1930 | 2500 x 1930 | 3 | 2400 |
| 2030 | 2500 x 2030 | 4 | 2600 |
| 2430 | 2500 x 2430 | 4 | 3200 |

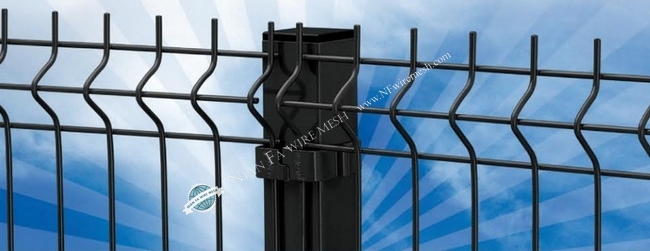

Welded Fence with square post
Installation Details

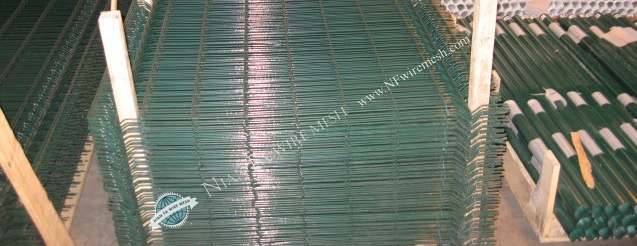

Packing
