field fence

Product Name: field fence

Model NO: NF-CF-01

Product Description : Field fence we offer have innovative and firm structure, flat surface, uniform opening and good integration. This product offers good flexibility; Good pressure resistance, corrosion resistance and weather resistance properties and can serve for a very long time. Even the cut pieces will not deform under pressure. It has excellent corrosion resistance and anti-oxidizing property. Unlike the welded wire mesh fences with the welding spots getting easily broken, this fences are firm forever once installed and make the best materials for protecting grassland, forestry, highway and environments.

HOW TO ORDER/SPECIFY

        Chat With Me
  • Type
  • Specifications
  • Packing
  • Downloads

 Commodity : Sheep Fence wire /Cattle fence/glavanized cattle fence/cattle fence supplier/ hot-DIP galvanized cattle fence

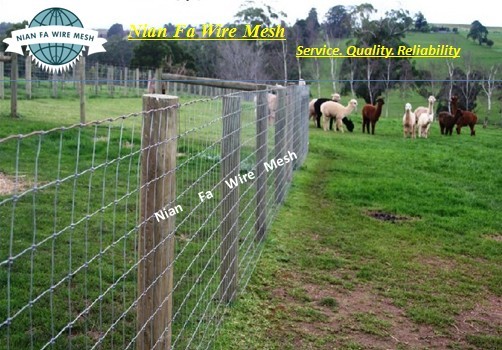

1. General Use of  livestock  fence : The products is widely used for protection and partition in such field as meadow, woods, fowlery, husbandry, sports ground, riverbanks and ecological engineering,

2. Surface Treatment of   livestock  fence : Electro-galvanized; Hot-dipped Galvanized; Powder Coated;

3. Advantage of   livestock  fence :
A. Protect animals an partition land

B. Rational construnction, high strength of extension

C. Long lifespan, easy to maintenance, hard to get rust

D. Quality control: We are manufacturer more than 16years, have own quality control department to make sure the quality when producing the goods.

4. Specification of   livestock  fence :
A. Distance in cm: (vertical) 15-14-13-11-10-8-6; (horizontal) 15-18-20-40- 50-60-65;

B. Fence height: 0.8m, 0.9m, 1.0m, 1.1m, 1.2m, 1.5m;

C. Length: 115 inch (50m) or 330 inch (100m);

D. Wire Distance, roll height and length can be customized.

Num type Specification Gross  Weight
(kg)
Set  and  bottom  wire  Diameter
(mm)
In  wire
Diameter
(mm)
Volume  diameter  (mm)
1 7/150/813/50 102+114+127+140+152+178 19.3 2.5 2.0 270
2 8/150/813/50 89(75)+89+102+114+127+140+152 20.8 2.5 2.0 270
3 8/150/902/50 89+102+114+127+140+152+178 21.6 2.5 2.0 270
4 8/150/1016/50 102+114+127+140+152+178+203 22.6 2.5 2.2 270
5 8/150/1143/50 114+127+140+152+178+203+229 23.6 2.5 2.0 270
6 9/150/991/50 89(75)+89+102+114+127+140+152+178 23.9 2.5 2.0 270
7 9/150/1245/50 102+114+127+140+152+178+203+229 26.0 2.5 2.0 270
8 10/150/1194/50 89(75)+89+102+114+127+140+152+178+203 27.3 2.5 2.0 270
9 10/150/1334/50 89+102+114+127+140+152+178+203+229 28.4 2.5 2.0 270
10 11/150/1422/50 89(75)+89+102+114+127+140+152+178+203+229 30.8 2.5 2.0 270

  In nude or as your requirements.
