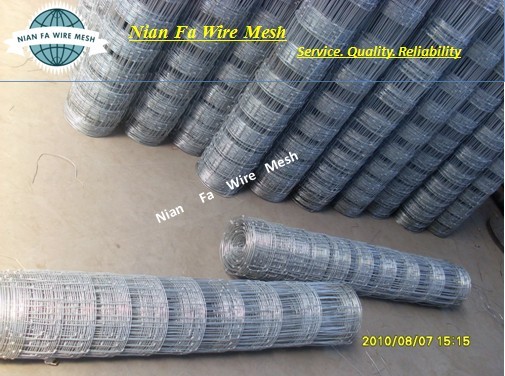

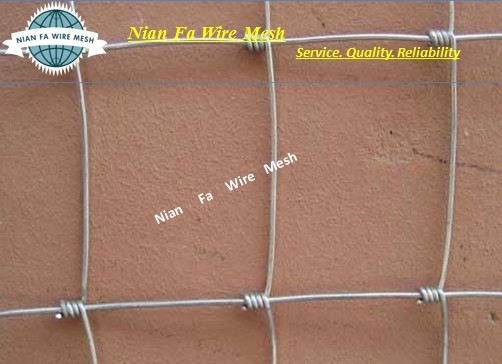

hot-dip galvanized cattle fence
Product Name: hot-dip galvanized cattle fence
Model NO: NF-CF-03
Product Description : Cattle fence we offer have innovative and firm structure, flat surface, uniform opening and good integration. This product offers good flexibility; Good pressure resistance, corrosion resistance and weather resistance properties and can serve for a very long time. Even the cut pieces will not deform under pressure. It has excellent corrosion resistance and anti-oxidizing property. Unlike the welded wire mesh fences with the welding spots getting easily broken, this fences are firm forever once installed and make the best materials for protecting grassland, forestry, highway and environments.
- Type
- Specifications
- Packing
- Downloads
hot-dip galvanized cattle fence
1.This product offers:
good flexibility, good pressure resistance,
corrosion resistance, weather resistance properties,
long use life
2. Even the cut pieces will not deform under pressure
3. It has excellent corrosion resistance and anti-oxidizing property
4. Unlike the welded wire mesh fences with the welding spots getting easily broken, our grassland fences are firm forever once installed and make the best materials for protecting grassland, forestry, highway environments
material: galvanized wire or hot-dip galvanized wire
height:0.8-2.4m
edge wire diameter:2.0m-3.5m
inside wire diameter:1.8m-3.0m
length: 20m, 30m ,40m, 50m,100m, can be customized
type:90/7/15,90/7/30,100/9/60
Num | type | Specification | Gross Weight (kg) |
Set and bottom wire Diameter (mm) |
In wire Diameter (mm) |
Volume diameter (mm) |
1 | 7/150/813/50 | 102+114+127+140+152+178 | 19.3 | 2.5 | 2.0 | 270 |
2 | 8/150/813/50 | 89(75)+89+102+114+127+140+152 | 20.8 | 2.5 | 2.0 | 270 |
3 | 8/150/902/50 | 89+102+114+127+140+152+178 | 21.6 | 2.5 | 2.0 | 270 |
4 | 8/150/1016/50 | 102+114+127+140+152+178+203 | 22.6 | 2.5 | 2.2 | 270 |
5 | 8/150/1143/50 | 114+127+140+152+178+203+229 | 23.6 | 2.5 | 2.0 | 270 |
6 | 9/150/991/50 | 89(75)+89+102+114+127+140+152+178 | 23.9 | 2.5 | 2.0 | 270 |
7 | 9/150/1245/50 | 102+114+127+140+152+178+203+229 | 26.0 | 2.5 | 2.0 | 270 |
8 | 10/150/1194/50 | 89(75)+89+102+114+127+140+152+178+203 | 27.3 | 2.5 | 2.0 | 270 |
9 | 10/150/1334/50 | 89+102+114+127+140+152+178+203+229 | 28.4 | 2.5 | 2.0 | 270 |
10 | 11/150/1422/50 | 89(75)+89+102+114+127+140+152+178+203+229 | 30.8 | 2.5 | 2.0 | 270 |
In nude or as your requirements.
