sheep fence

Product Name: sheep fence

Model NO: NF-SF-01

Product Description : Sheep fence we offer have innovative and firm structure, flat surface, uniform opening and good integration. This product offers good flexibility; Good pressure resistance, corrosion resistance and weather resistance properties and can serve for a very long time. Even the cut pieces will not deform under pressure.

HOW TO ORDER/SPECIFY

        Chat With Me
  • Type
  • Specifications
  • Packing
  • Downloads

 Commodity : Sheep Fence wire /Cattle fence/glavanized cattle fence/cattle fence supplier/ hot-DIP galvanized cattle fence

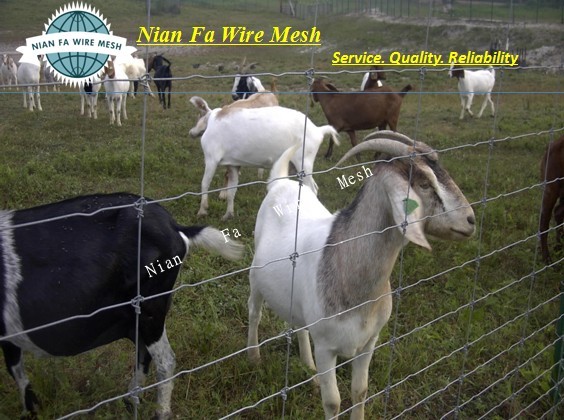

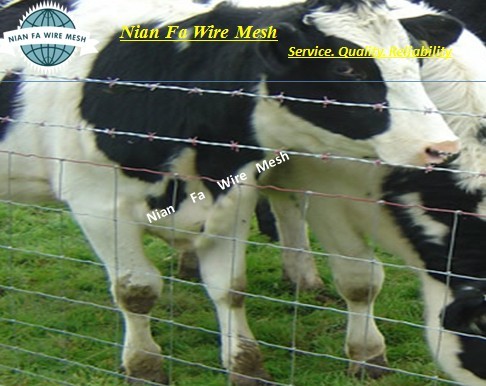

1. General Use of  livestock  fence : The products is widely used for protection and partition in such field as meadow, woods, fowlery, husbandry, sports ground, riverbanks and ecological engineering,

2. Surface Treatment of   livestock  fence : Electro-galvanized; Hot-dipped Galvanized; Powder Coated;

3. Advantage of   livestock  fence :
A. Protect animals an partition land

B. Rational construnction, high strength of extension

C. Long lifespan, easy to maintenance, hard to get rust

D. Quality control: We are manufacturer more than 16years, have own quality control department to make sure the quality when producing the goods.

4. Specification of   livestock  fence :
A. Distance in cm: (vertical) 15-14-13-11-10-8-6; (horizontal) 15-18-20-40- 50-60-65;

B. Fence height: 0.8m, 0.9m, 1.0m, 1.1m, 1.2m, 1.5m;

C. Length: 115 inch (50m) or 330 inch (100m);

D. Wire Distance, roll height and length can be customized.



Num type Specification Gross  Weight
(kg)
Set  and  bottom  wire  Diameter
(mm)
In  wire
Diameter
(mm)
Volume  diameter  (mm)
1 7/150/813/50 102+114+127+140+152+178 19.3 2.5 2.0 270
2 8/150/813/50 89(75)+89+102+114+127+140+152 20.8 2.5 2.0 270
3 8/150/902/50 89+102+114+127+140+152+178 21.6 2.5 2.0 270
4 8/150/1016/50 102+114+127+140+152+178+203 22.6 2.5 2.2 270
5 8/150/1143/50 114+127+140+152+178+203+229 23.6 2.5 2.0 270
6 9/150/991/50 89(75)+89+102+114+127+140+152+178 23.9 2.5 2.0 270
7 9/150/1245/50 102+114+127+140+152+178+203+229 26.0 2.5 2.0 270
8 10/150/1194/50 89(75)+89+102+114+127+140+152+178+203 27.3 2.5 2.0 270
9 10/150/1334/50 89+102+114+127+140+152+178+203+229 28.4 2.5 2.0 270
10 11/150/1422/50 89(75)+89+102+114+127+140+152+178+203+229 30.8 2.5 2.0 270

 In nude or as your request.
